Product overview Lifting, lashing, transporting

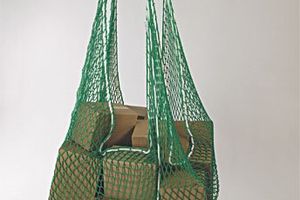

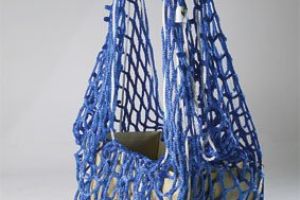

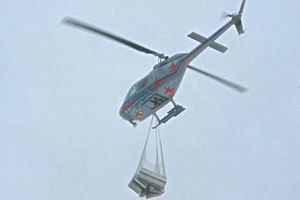

PP-Load carrying net Ø 6 mm, mesh size 100 mm, size: 4 x 4 m
Article number
2060-100
Mesh
square
Payload
2 t
Size
4 x 4 m
Material diameter
6 mm
Mesh size
100 mm
Material
high tenacity polypropylene, knotless
Edge Execution
reinforced selvedge cord of approx. 9 mm, with edged rope, with two cross ropes through the net (PA Ø 14 mm), incl. loops with scuff protection on the corners
edge rope
nylon rope (Ø 14 mm, white), all around
Mesh breaking strength
4.20 kN
Standards and Rules
EN 1263-1
Certificate
Oeko-Tex® certificate 12.0.02466 (Standard 100)
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Weight per m²
360 g/m²
Total Weight
11.20 kg
Unit price
€ 334.99
PP-Load carrying net Ø 5 mm, mesh size 60 mm, size: 4 x 4 m
Article number
2061-060
Mesh
square
Payload
1 t
Size
4 x 4 m
Material diameter
5 mm
Mesh size
60 mm
Material
high tenacity polypropylene, knotless
Edge Execution
reinforced selvedge cord of approx. 9 mm, with edged rope, with two cross ropes through the net (PA Ø 14 mm), incl. loops with scuff protection on the corners
edge rope
nylon rope (Ø 14 mm, white), all around
Mesh breaking strength
3.20 kN
Standards and Rules
EN 1263-1
Certificate
Oeko-Tex® certificate 12.0.02466 (Standard 100)
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Weight per m²
300 g/m²
Total Weight
9 kg
Unit price
€ 291.55
PP-Load carrying net Ø 15 mm, mesh size 130 mm, size: 3.30 x 3.30 m
Article number
2062-130
Mesh
square
Payload
3 t
Tensile strength after two years of climatic influences
90%
Size
3,30 x 3,30 m
Material diameter
15 mm
Mesh size
130 mm
Material
high tenacity polypropylene, knotless
Edge Execution
with edged rope, with two cross ropes through the net (PA Ø 16 mm), incl. loops with scuff protection on the corners
edge rope
nylon rope (Ø 16 mm, white), all around
Mesh breaking strength
8.30 kN
Standards and Rules
EN 1263-1
Certificate
Oeko-Tex® certificate 12.0.02466 (Standard 100)
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Customs tariff number
5608 19 30
Weight per m²
1150 g/m²
Total Weight
15.70 kg
Unit price
€ 395.68

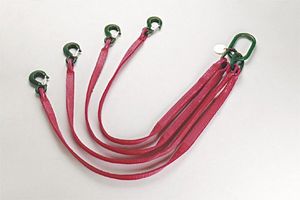

Polyester straps
Article number
2064
Size
strap width: 40 mm, strap strength: 10 mm
Material
polyester
Execution
with three-part ring and eyehooks
Customs tariff number
5806 32 90
Total Weight
8.00 kg
Unit price
€ 405.20

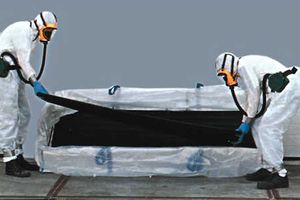

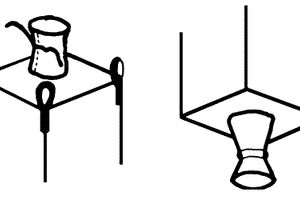

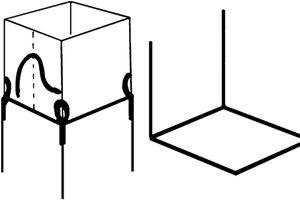

Big Bag with apron on top and sealed base
Article number
32501
Customs tariff number
6305 32 90
Unit price
€ 19.04

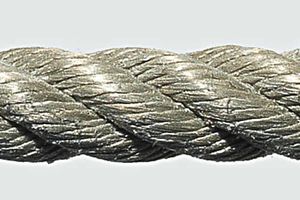

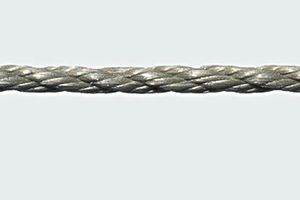

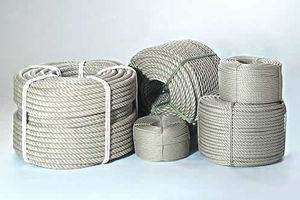

Polypropylene synthetic hemp-coloured ropes, ø 6 mm
Article number
40201
Breaking strength
590 daN
Material
polypropylene
Material diameter
6 mm
Length
100 m
Customs tariff number
5607 49 19
Unit Price per cable
€ 23.21
Big Bag with run-in and run-out channel
Article number
32502
Customs tariff number
6305 32 90
Unit price
€ 22.02
Polypropylene synthetic hemp-coloured ropes, ø 8 mm
Article number
40202
Breaking strength
1040 daN
Material
polypropylene
Material diameter
8 mm
Length
100 m
Customs tariff number
5607 49 19
Unit Price per cable
€ 40.46
Jumbo Bag, size: 260 x 125 x 30 cm
Article number
32511
Customs tariff number
6305 32 89
Unit price
€ 27.97
Polypropylene synthetic hemp-coloured ropes, ø 10 mm
Article number
40203
Breaking strength
1530 daN
Material
polypropylene
Material diameter
10 mm
Length
100 m
Customs tariff number
5607 49 19
Unit Price per cable
€ 60.69
Jumbo Bag, size: 300 x 105 x 30 cm
Article number
32512
Bending strength & abrasion resistance
good
Customs tariff number
6305 32 89
Unit price
€ 27.97
Polypropylene synthetic hemp-coloured ropes, ø 12 mm
Article number
40204
Breaking strength
1950 daN
Material
high tenacity polypropylene
Material diameter
12 mm
Length
100 m
Customs tariff number
5607 49 19
Unit Price per cable
€ 87.47
Polypropylene synthetic hemp-coloured ropes, ø 14 mm
Article number
40205
Breaking strength
2690 daN
Material
high tenacity polypropylene
Material diameter
14 mm
Length
50 m
Customs tariff number
5607 49 19
Unit Price per cable
€ 60.69
Polypropylene synthetic hemp-coloured ropes, ø 16 mm
Article number
40206
Breaking strength
3330 daN
Material
high tenacity polypropylene
Material diameter
16 mm
Length
50 m
Customs tariff number
5607 49 19
Unit Price per cable
€ 77.35
Polypropylene synthetic hemp-coloured ropes, ø 20 mm
Article number
40208
Breaking strength
5120 daN
Material
high tenacity polypropylene
Material diameter
20 mm
Length
50 m
Customs tariff number
5607 49 19
Unit Price per cable
€ 130.90
Polypropylene synthetic hemp-coloured ropes, ø 24 mm
Article number
40210
Breaking strength
7170 daN
Material
high tenacity polypropylene
Material diameter
24 mm
Length
50 m
Customs tariff number
5607 49 19
Unit Price per cable
€ 175.53
Polypropylene synthetic hemp-coloured ropes, ø 28 mm
Article number
40212
Breaking strength
9440 daN
Material
high tenacity polypropylene
Material diameter
28 mm
Length
50 m
Customs tariff number
5607 49 19
Unit Price per cable
€ 255.85

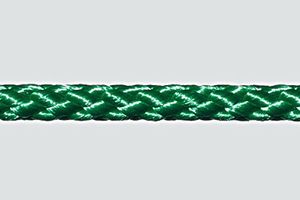

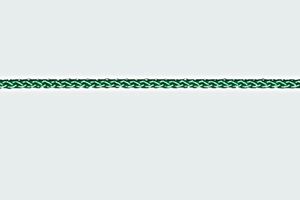

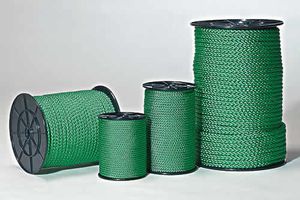

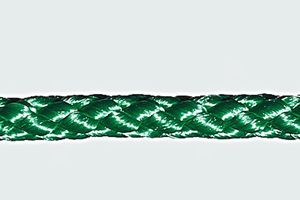

Braided cord made of high-tensile green polypropylene, ø 3 mm
Article number
35211
Bending strength & abrasion resistance
good
Breaking strength
100 daN
Customs tariff number
5607 49 11
Material
high tenacity polypropylene
Material diameter
3 mm
Length
100 m
Unit Price per reel
€ 14.88
Braided cord made of high-tensile green polypropylene, ø 4 mm
Article number
35212
Breaking strength
150 daN
Customs tariff number
5607 49 11
Material
high tenacity polypropylene
Material diameter
4 mm
Length
100 m
Unit Price per reel
€ 23.21
Braided cord made of high-tensile green polypropylene, ø 6 mm
Article number
35214
Breaking strength
335 daN
Customs tariff number
5607 49 11
Material
high tenacity polypropylene
Material diameter
6 mm
Length
100 m
Unit Price per reel
€ 41.65
Braided cord made of high-tensile green polypropylene, ø 8 mm
Article number
35215
Breaking strength
625 daN
Customs tariff number
5607 49 11
Material
high tenacity polypropylene
Material diameter
8 mm
Length
100 m
Unit Price per reel
€ 53.55
Braided cord made of high-tensile green polypropylene, ø 10 mm
Article number
35216
Breaking strength
960 daN
Customs tariff number
5607 49 11
Material
high tenacity polypropylene
Material diameter
10 mm
Length
100 m
Unit Price per reel
€ 80.33
Braided cord made of high-tensile green polypropylene, ø 12 mm
Article number
35217
Breaking strength
1330 daN
Customs tariff number
5607 49 11
Material
high tenacity polypropylene
Material diameter
12 mm
Length
100 m
Unit Price per reel
€ 104.13

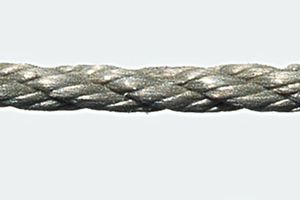

Joining rope, type O, in cables of 220 m
Article number
21380R
Breaking strength
1500 daN
Customs tariff number
5607 49 19
Material
polysteel
Material diameter
9 mm
Length
220 m
Unit Price per reel
€ 91.63

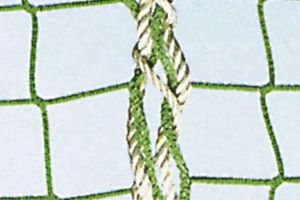

Cross rope, in cables of 220 m
Article number
21370R
Breaking strength
3000 daN
Customs tariff number
5607 49 19
Material diameter
12 mm
Material
polysteel
Length
220 m
Unit Price per cable
€ 126.74

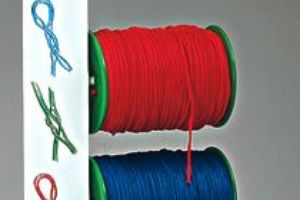

Isilink cord ø 3 mm
Article number
38030
Breaking strength
80 daN
Customs tariff number
6307 90 10
Length
1000 m
Material
Huck-Isilink
Material diameter
3 mm
Unit Price per roll
€ 129.15
Isilink cord ø 4 mm
Article number
38040
Breaking strength
100 daN
Customs tariff number
6307 90 10
Length
600 m
Material
Huck-Isilink
Material diameter
4 mm
Unit Price per roll
€ 143.30
