Safety nets for construction sites
Product overview Safety nets for construction sites
Safety Net 5 x 10 m , Mesh: 100 mm
Article number
19040-100
Mesh
square
Size
5 x 10 m
Material
high tenacity polypropylene, knotless
Material diameter
4.75 mm
Mesh size
100 mm
Execution
edged all round with rope
Mesh breaking strength
3000 N
Energy absorption
4,6 kJ
Tensile Strength of Edged Rope
30 kN
Total Weight
11.65 kg
Weight per m²
275 g/m²
Standards and Rules
BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate
GS verification certificate 18100015, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A2
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Unit price
€ 205.28
Safety net 6 x 10m with border rope, Mesh: 100mm
Article number
19041-100
Mesh
square
Size
6 x 10 m
Material
high tenacity polypropylene, knotless
Material diameter
4.75 mm
Mesh size
100 mm
Execution
edged all round with rope
Mesh breaking strength
3.00 kN
Energy absorption
4.6 kJ
Tensile Strength of Edged Rope
30 kN
Total Weight
13.35 kg
Weight per m²
275 g/m²
Standards and Rules
BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate
GS verification certificate 18100015, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A2
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Unit price
€ 246.33
Safety net 10 x 10m with border rope, Mesh: 100mm
Article number
19042-100
Mesh
square
Size
10 x 10 m
Material
high tenacity polypropylene, knotless
Material diameter
4.75 mm
Mesh size
100 mm
Execution
edged all round with rope
Mesh breaking strength
3.00 kN
Energy absorption
4.6 kJ
Tensile Strength of Edged Rope
30 kN
Total Weight
21,20 kg
Weight per m²
275 g/m²
Standards and Rules
BGR 179, DGUV Regel 101-011, DIN EN 1263-1
Certificate
GS verification certificate 18100015, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A2
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Unit price
€ 410.55
Safety net 7.5 x 15m with border rope, Mesh: 100mm
Article number
19043-100
Mesh
square
Size
7,5 x 15 m
Material
high tenacity polypropylene, knotless
Material diameter
4.75 mm
Mesh size
100 mm
Execution
edged all round with rope
Mesh breaking strength
3.00 kN
Energy absorption
4.6 kJ
Tensile Strength of Edged Rope
30 kN
Total Weight
23,85 kg
Weight per m²
275 g/m²
Standards and Rules
BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate
GS verification certificate 18100015, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A2
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Unit price
€ 461.72

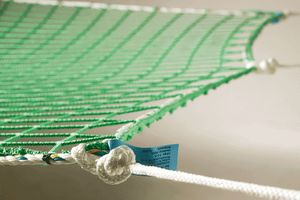

Safety Net per m² with Thimbles, Ø 5 mm, Mesh: 60 mm
Article number
2003-060
Mesh
square
Size
any size
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
60 mm
Execution
edged all round with rope and thimbles
Mesh breaking strength
3.20 kN
Energy absorption
6.1 kJ
Tensile Strength of Edged Rope
30 kN
Weight per m²
375 g/m²
Standards and Rules
BG regulation no. 179, EN 1263-1
Certificate
GS verification certificate 18100012, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A1
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Unit Price per m²
€ 14.60
Safety Net per m² with Thimbles, Ø 5 mm, Mesh: 45 mm
Article number
2003-045
Mesh
square
Size
any size
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
45 mm
Execution
edged all round with rope and thimbles
Mesh breaking strength
3.20 kN
Energy absorption
9.0 kJ
Tensile Strength of Edged Rope
30 kN
Weight per m²
475 g/m²
Standards and Rules
BG regulation no. 179, EN 1263-1
Certificate
GS verification certificate 18100010, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
B1
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Unit Price per m²
€ 15.75
Safety Net 5 x 10 m with Thimbles, Mesh: 100 mm
Article number
20030-100
Mesh
square
Size
5 x 10 m
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
100 mm
Execution
edged all round with rope and thimbles
Mesh breaking strength
3.20 kN
Energy absorption
4.8 kJ
Tensile Strength of Edged Rope
30 kN
Total Weight
13.90 kg
Weight per m²
275 g/m²
Standards and Rules
BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate
GS verification certificate 18100013, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A2
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Unit price
€ 261.80
Safety Net 6 x 10m with Thimbles, Mesh: 100 mm
Article number
20031-100
Mesh
square
Size
6 x 10 m
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
100 mm
Execution
edged all round with rope and thimbles
Mesh breaking strength
3.20 kN
Energy absorption
4.8 kJ
Tensile Strength of Edged Rope
30 kN
Total Weight
14.20 kg
Weight per m²
275 g/m²
Standards and Rules
BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate
GS verification certificate 18100013, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A2
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Unit price
€ 314.16
Safety Net per m² with Suspension Ropes, Ø5mm, Mesh: 100 mm
Article number
2103-100
Mesh
square
Size
any size
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
100 mm
Execution
edged all round with rope and suspension ropes
Mesh breaking strength
3.20 kN
Energy absorption
4.8 kJ
Tensile Strength of Edged Rope
30 kN
Tensile Strength of Suspension Rope
30 kN
Weight per m²
275 g/m²
Standards and Rules
BG regulation no. 179, EN 1263-1
Certificate
GS verification certificate 18100013, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A2
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Unit Price per m²
€ 9.95
Safety Net per m² with Suspension Ropes, Ø5mm, Mesh: 60 mm
Article number
2103-060
Mesh
square
Size
any size
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
60 mm
Execution
edged all round with rope and suspension ropes
Mesh breaking strength
3.20 kN
Energy absorption
6.1 kJ
Tensile Strength of Edged Rope
30 kN
Tensile Strength of Suspension Rope
30 kN
Weight per m²
375 g/m²
Standards and Rules
BG regulation no. 179, EN 1263-1
Certificate
GS verification certificate 18100012, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A1
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Unit Price per m²
€ 15.50
Safety Net per m² with Suspension Ropes, Ø5mm, Mesh: 45 mm
Article number
2103-045
Mesh
square
Size
any size
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
45 mm
Execution
edged all round with rope and suspension ropes
Mesh breaking strength
3.20 kN
Energy absorption
9.0 kJ
Tensile Strength of Edged Rope
30 kN
Tensile Strength of Suspension Rope
30 kN
Weight per m²
475 g/m²
Standards and Rules
BG regulation no. 179, EN 1263-1
Certificate
GS verification certificate 18100010, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
B1
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Unit Price per m²
€ 16.60
Safety Net 5 x 10m with Suspension Ropes, Mesh: 100 mm
Article number
21030-100
Mesh
square
Size
5 x 10 m
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
100 mm
Execution
edged all round with rope and suspension ropes
Mesh breaking strength
3.20 kN
Energy absorption
4.8 kJ
Tensile Strength of Edged Rope
30 kN
Tensile Strength of Suspension Rope
30 kN
Total Weight
14.60 kg
Weight per m²
275 g/m²
Standards and Rules
BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate
GS verification certificate 18100013, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A2
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Unit price
€ 309.40
Safety Net 6 x 10m with Suspension Ropes , Mesh: 100 mm
Article number
21031-100
Mesh
square
Size
6 x 10 m
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
100 mm
Execution
edged all round with rope and suspension ropes
Mesh breaking strength
3200 N
Energy absorption
4,8 kJ
Tensile Strength of Edged Rope
30 kN
Tensile Strength of Suspension Rope
30 kN
Total Weight
16.75 kg
Weight per m²
275 g/m²
Standards and Rules
BG regulation no. 179, DGUV standard 101-011, DGUV information 201-010, EN 1263-1
Certificate
GS verification certificate 18100013, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A2
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Unit price
€ 364.14
Safety Net per m², Ø 5 mm, Mesh: 100 mm (Diamond Meshes)
Article number
1803-100
Mesh
diamond
Size
any size
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
100 mm
Execution
edged all round with rope
Tensile Strength of Edged Rope
30 kN
Net class
A2
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
Customs tariff number
5608 19 30
Unit Price per m²
€ 7.85
Safety Net per m², Ø 5 mm, Mesh: 60 mm (Diamond Meshes)
Article number
1803-060
Customs tariff number
5608 19 30
Mesh
diamond
Size
any size
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
60 mm
Execution
edged all round with rope
Tensile Strength of Edged Rope
30 kN
Net class
A1
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
Unit Price per m²
€ 13.50
Fall Safety Net with Airthight Tarpaulin 6x10m
Article number
22041-100
Bending strength & abrasion resistance
good
Mesh
square
Size
6 x 10 m
Type
impermeable
Material
high tenacity polypropylene, knotless / polyethylene fabric
Material diameter
5 mm
Mesh size
100 mm
Execution
edged all round with rope
Type of Textile
HDPE tarpaulin with LDPE coating
Wind Reduction
100%
Tensile Strength of Edged Rope
30 kN
Total Weight
22.35 kg
Weight per m²
425 g/m²
Mesh breaking strength
3.20 kN
Energy absorption
4.8 kJ
Standards and Rules
BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate
GS verification certificate 18100013, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A2
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Weather-Resistance
good
UV-Resistance
300 kly
Customs tariff number
5608 19 30
Unit price
€ 403.41
Fall Safety Net with Airthight Tarpaulin 8x10m
Article number
22042-100
Bending strength & abrasion resistance
good
Mesh
square
Size
8 x 10 m
Type
impermeable
Material
high tenacity polypropylene, knotless / polyethylene fabric
Material diameter
5 mm
Mesh size
100 mm
Execution
edged all round with rope
Type of Textile
HDPE tarpaulin with LDPE coating
Wind Reduction
100%
Tensile Strength of Edged Rope
30 kN
Total Weight
29.80 kg
Weight per m²
425 g/m²
Mesh breaking strength
3.20 kN
Energy absorption
4.8 kJ
Standards and Rules
BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate
GS verification certificate 18100013, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A2
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Weather-Resistance
good
UV-Resistance
300 kly
Customs tariff number
5608 19 30
Unit price
€ 537.88
Fall Safety Net with Airthight Tarpaulin 10x12m
Article number
22043-100
Bending strength & abrasion resistance
good
Mesh
square
Size
10 x 12 m
Type
impermeable
Material
high tenacity polypropylene, knotless / polyethylene fabric
Material diameter
5 mm
Mesh size
100 mm
Execution
edged all round with rope
Type of Textile
HDPE tarpaulin with LDPE coating
Wind Reduction
100%
Tensile Strength of Edged Rope
30 kN
Total Weight
44.70 kg
Weight per m²
425 g/m²
Mesh breaking strength
3.20 kN
Energy absorption
4.8 kJ
Standards and Rules
BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate
GS verification certificate 18100013, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A2
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Weather-Resistance
good
UV-Resistance
300 kly
Customs tariff number
5608 19 30
Unit price
€ 806.82
Fall Safety Net with Airtight Tarpaulin 10x15m
Article number
22044-100
Bending strength & abrasion resistance
good
Mesh
square
Size
10 x 15 m
Type
impermeable
Material
high tenacity polypropylene, knotless / polyethylene fabric
Material diameter
5 mm
Execution
edged all round with rope
Type of Textile
HDPE tarpaulin with LDPE coating
Wind Reduction
100%
Tensile Strength of Edged Rope
30 kN
Total Weight
55.90 kg
Weight per m²
425 g/m²
Mesh breaking strength
3.20 kN
Energy absorption
4.8 kJ
Standards and Rules
BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate
GS verification certificate 18100013, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A2
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Weather-Resistance
good
UV-Resistance
300 kly
Customs tariff number
5608 19 30
Unit price
€ 1,008.53
Safety Net per m², Ø 5 mm, Mesh: 100 mm
Article number
1903-060
Mesh
square
Size
any size
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
60 mm
Execution
edged all round with rope
Mesh breaking strength
3.20 kN
Energy absorption
6.1 kJ
Tensile Strength of Edged Rope
30 kN
Weight per m²
375 g/m²
Standards and Rules
BG regulation no. 179, DGUV standard 101-011, EN 1263-1
Certificate
GS verification certificate 18100012, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
A1
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Unit Price per m²
€ 13.45
Safety Net per m², Ø 5 mm, Mesh: 45 mm
Article number
1903-045
Mesh
square
Size
any size
Material
high tenacity polypropylene, knotless
Material diameter
5 mm
Mesh size
45 mm
Execution
edged all round with rope
Mesh breaking strength
3.20 kN
Energy absorption
9.0 kJ
Tensile Strength of Edged Rope
30 kN
Weight per m²
475 g/m²
Standards and Rules
BG regulation no. 179, DGUV standard 101-011, DGUV information 201-010, EN 1263-1
Certificate
GS verification certificate 18100010, Oeko-Tex® certificate 12.0.02466 (Standard 100)
Net class
B1
Safety net system
S (rope-edged safety net)
Regular Inspection Interval
12 months
Number of test meshes
3 pcs.
Continuous operating temperature
-40 to +80 °C
Melting point
165 °C
Bending strength & abrasion resistance
good
Weather-Resistance
good
UV-Resistance
300 kly
Tensile strength after two years of climatic influences
90%
Customs tariff number
5608 19 30
Unit Price per m²
€ 14.50

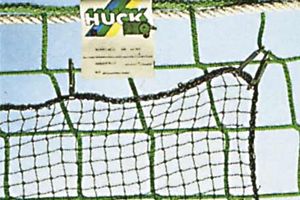

Overlay net per m², approx. 1.8mm, Mesh: 20mm
Article number
2007-020
Bending strength & abrasion resistance
good
Customs tariff number
5608 19 30
Mesh
square
Size
any size
Material diameter
1.8 mm
Mesh size
20 mm
Material
high tenacity polypropylene, knotless
Continuous operating temperature
-40 to +80 °C
Weather-Resistance
good
UV-Resistance
300 kly
Unit Price per m²
€ 8.15
Panels beeing attached to the safety net
Article number
35000
Unit Price per m²
€ 1.49
Joining rope, type O, supplied loose
Article number
21380
Material
polysteel
Material diameter
10 mm
Maximum Tensile Strength
1500 daN
Customs tariff number
5607 49 19
Unit Price per meter
€ 0.83
Cross rope, ø 12 mm, attached to net
Article number
2137
Customs tariff number
5607 49 19
Material diameter
12 mm
Material
polysteel
Unit Price per meter
€ 2.14
Air-Permeable Overlay Panel, 100 g/m², size of roll: 6 x 10 m
Article number
74201
Bending strength & abrasion resistance
good
Customs tariff number
6005 37 00
Size
6 x 10 m
Material
high-density polyethylene fabric
Type
air-permeable
Execution
with eyelets
Finish
normal
Weight per m²
100 g/m²
Continuous operating temperature
-40 to +80 °C
Weather-Resistance
good
UV-Resistance
300 kly
Unit Price per roll
€ 78.54
Air-Permeable Overlay Panel, 100 g/m², size of roll: 8 x 10 m
Article number
74202
Customs tariff number
6005 37 00
Size
8 x 10 m
Material
high-density polyethylene fabric
Type
air-permeable
Execution
with eyelets
Finish
normal
Weight per m²
100 g/m²
Continuous operating temperature
-40 to +80 °C
Weather-Resistance
good
UV-Resistance
300 kly
Unit Price per roll
€ 104.72
